2025 TYM Tractors T4058PC - 0068






Get in Touch
Description
2025 TYM Tractors T4058PC
A premium compact utility tractor that delivers power and efficiency
When it comes to all-around productivity, look no further than the T4058PC. This compact utility tractor is designed to boost output, delivering impressive efficiency and deluxe features that have become the hallmark of the TYM Series 4.
Features May Include:
- Eco-friendly TYM Tier 4 engine: Equipped with the Turbo charged company designed-and-made TYM engine, the tractor is designed to be eco-friendly and fuel efficient but makes no compromise on performance and reliability.
- MYTYM telematics system: Through MYTYM's remote diagnostics service, check the real-time monitoring, enhanced maintenance and improved operational efficiency.
- Power shuttle and D-clutch: Power shuttle enhances efficiency for tasks requiring frequent directional changes in tighter spaces without stepping on the clutch pedal and enhance the manueuveratility.
- Electronic hydraulic control system: The system allows for easy control of operations for 3pt-hitch control, turn/back up and draft sensitivity adjustement and giving operators full control over their task at hand.

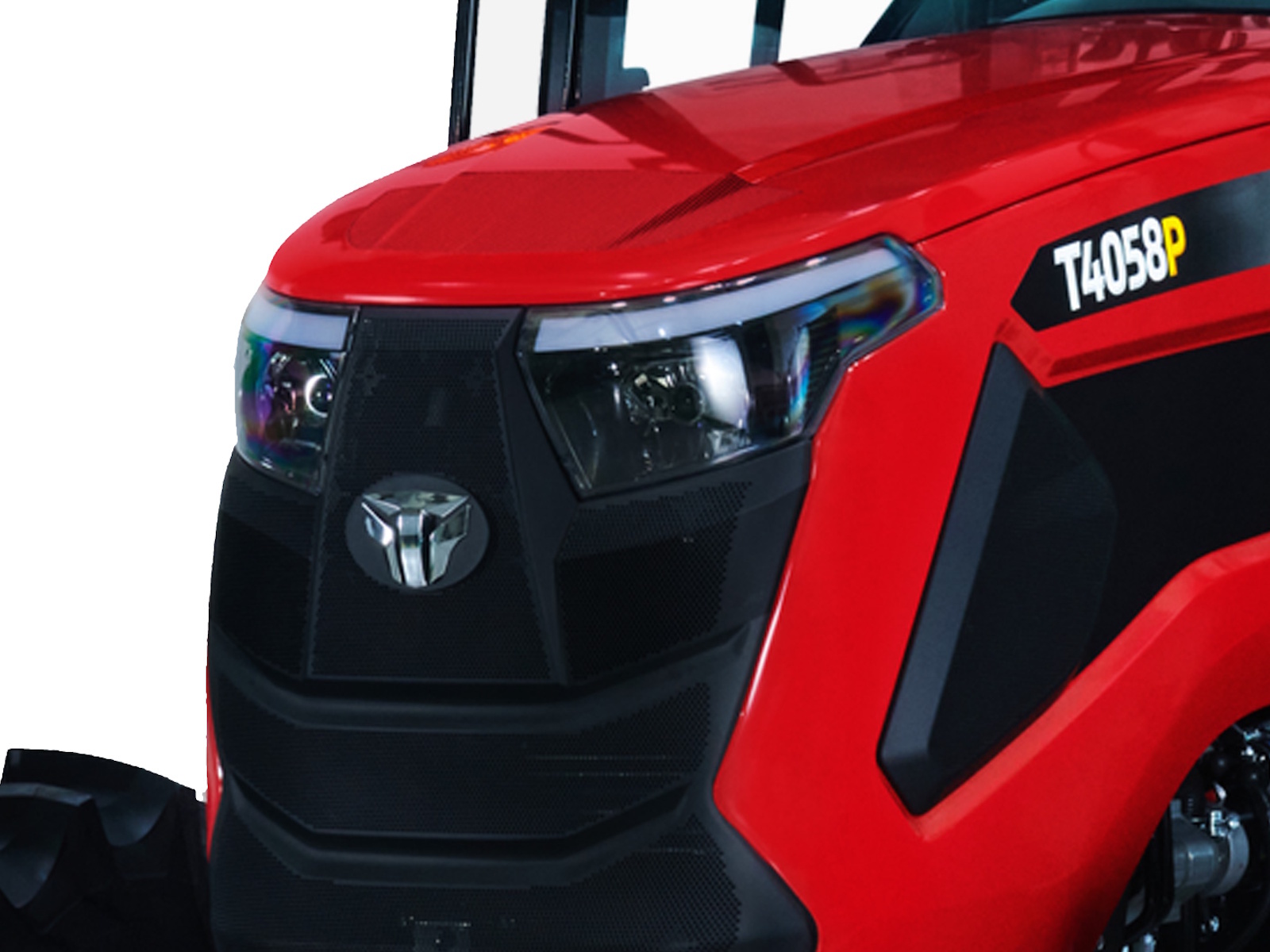

- Front LED work lighting bar: The cabin version introduces an LED bar-type front worklight, ideal for low-light tasks and extended operational hours and enhance the productivity.
- 6-Ports front/rear external hydraulic valve with 2-buttons joystick: The 6-port front selective control valves allows for a wide variety of implements to be installed. This allows for easy and efficient grapple operation.
Info
Industry
Agriculture
Make
TYM Tractors
Model
T4058PC
Trim
Base
Year
2025
Stock Number
0068
Category
Tractor
Subcategory
Compact
Condition
New
Specifications
Engine
manufacturer: TYM T2300T1-UTC_4
Engine Type
Turbo charger
Power/Horsepower
58 hp
PTO Type
rear: 540 rpm | power: 48 hp | Independent | control: Wet, Multi-disc
RPM
Rated engine speed: 2600 rpm
Notes
R1 Agricultural - Front: 9.5–20 | R1 Agricultural - Rear: 14.9–28 | R4 Industrial - Front: 10.5/80-18 | R4 Industrial - Rear: 16.9–24 | Golf Tires - Front: 29x12.5-15 | Golf Tires - Rear: 44x18.00-20 | Crankcase: 4.8 qt | Coolant: 6.2 qt | Coolant: 6.2 qt | No. of standard remote valves: Loader: 6 / Rear: 6 | Lift control type: Position | Hitch lift capacity at 24 inches behind link ends: 3748 lb | Hitch lift capacity: 4409 lb | Total flow: 16.5 gpm | Air cleaner: Dry element | Pump type: Single gear pump | Implement flow: 11.4 gpm
Cylinders
No. of cylinders: 4
Displacement
139.5 cu. in.
Alternator
12V, 70A
Fuel System
IDI
Steering
flow: 5.13 gpm | Hydrostatic
Transmission
type: Power shuttle
Brakes
Wet, Multi disc
Clutch
Wet Multi disc
Fuel Capacity
15.3 gal
Length
with 3-point hitch: 141.5 in
Width
68.9 in
Wheelbase
78.7 in
Height
to top of cabin 99.2 in |
Ground Clearance
Min: 18.1 in.
Turning Radius
Min. turn radius with brakes: (L) 121.9 in. | 3098 mm / (R) 125.3 in. | 3184 mm | Min. turn radius with brakes: (L) 121.9 in. | 3098 mm / (R) 125.3 in. | 3184 mm
Weight
with cab: 4951.5 lb
Fuel Type
Gas
