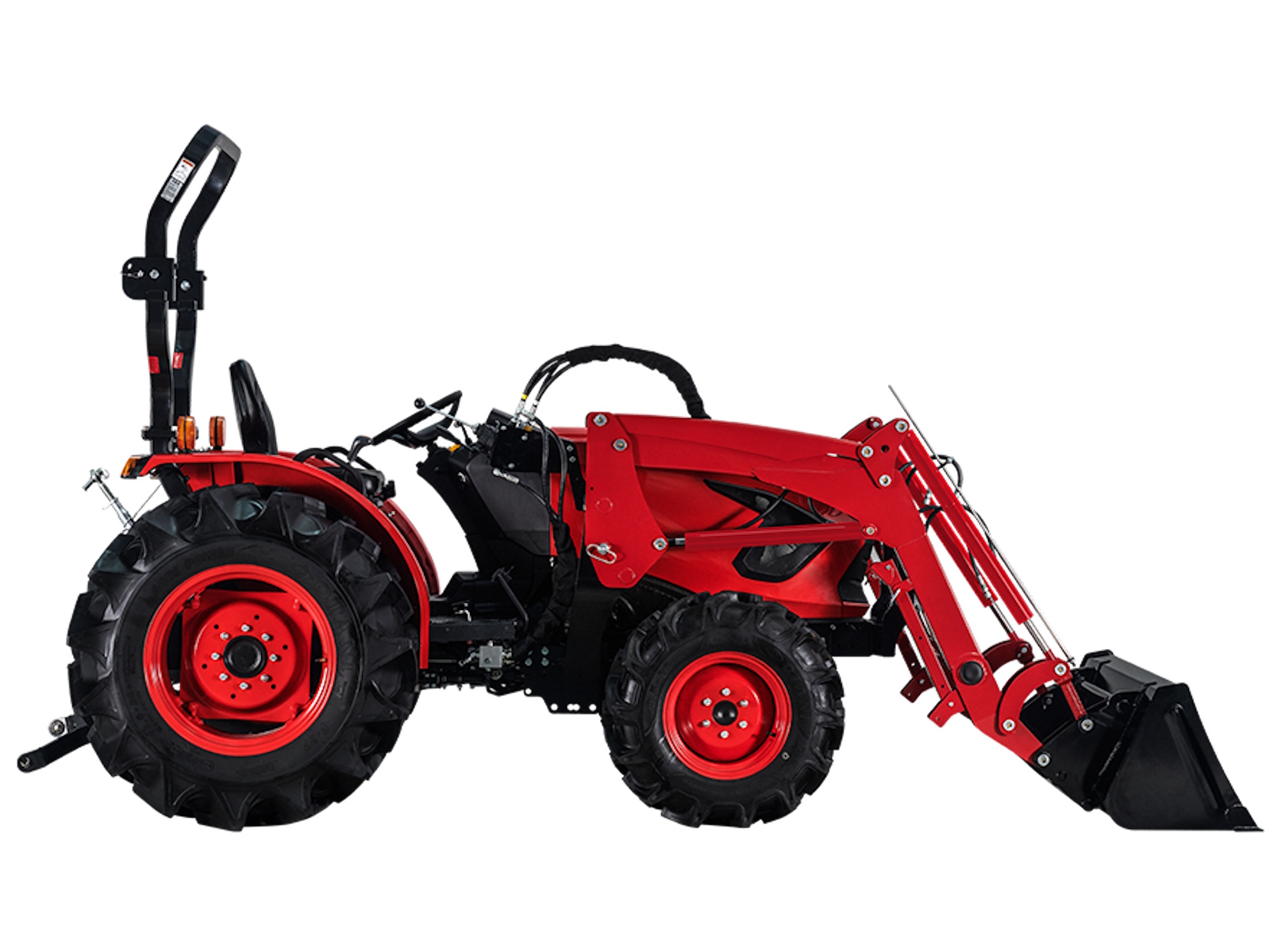

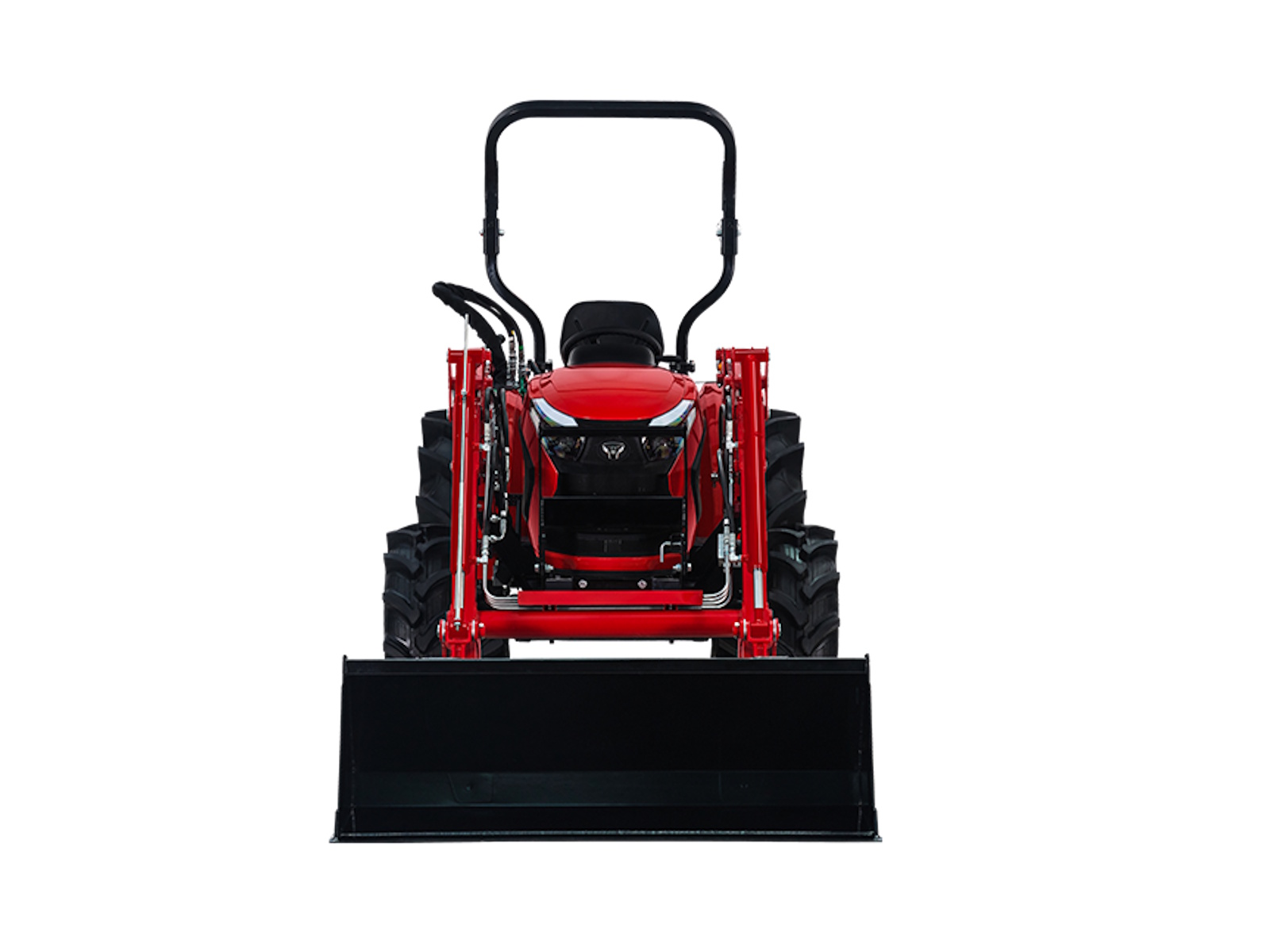

2026 TYM Tractors 3515
A compact tractor that excels in performance and delivers results
Crafted with optimal dimensions and excellent specifications, the 3515 tractor partners with you for jobs of all sizes. It's compact enough for the versatility you need, yet powerful enough to handle tougher jobs on and off the field.
Features May Incluide:
- Eco-friendly TYM Tier 4 engine: Equipped with a naturally aspirated engine designed and manufactured by TYM, the tractor is designed to be eco-friendly and fuel-efficient without compromising on performance.
- Tilt steering wheel: The tilt steering wheel allows operators to adjust the position of the steering wheel for a more comfortable driving experience.
- PTO on/off switch: Safety is a top priority. The PTO switch ensures secure operation of all tractor attachments.

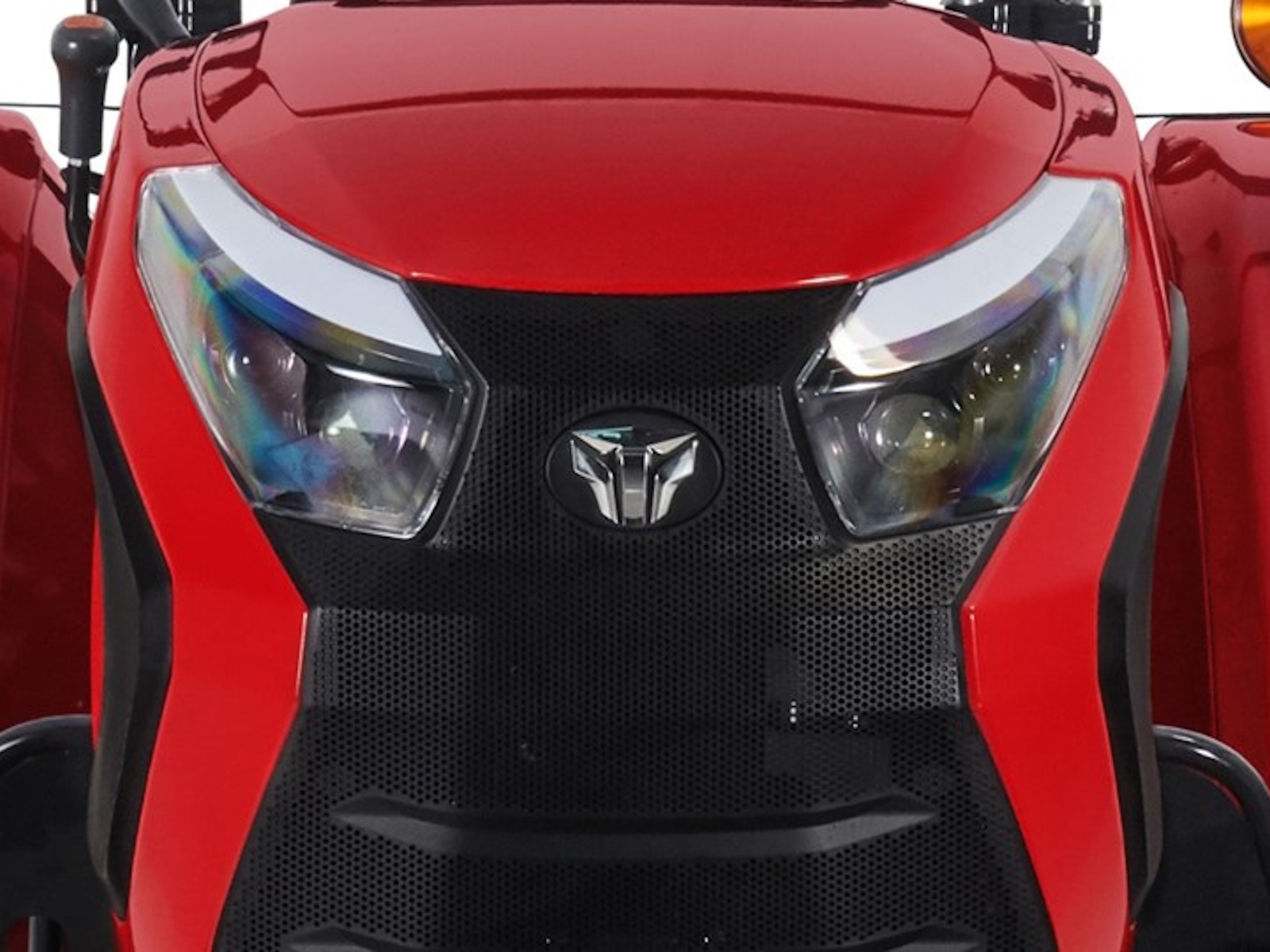

- LED work light (optional): Full front and rear LED work lights facilitate safer operations, particularly in low visibility conditions such as rainy or dusty work environments, or during nighttime tasks.
- Differential lock system and low turning angle: The differential lock system, activated with easily accessible levers, provides enhanced traction in slippery work environments, while a 52˚ turning angle makes operation in narrow areas much easier.
- Water-separating fuel filter: The water-separating fuel filter prevents foreign substances from entering the fuel, ensuring better engine starting performance and preventing damage to the machine.
Info
Industry
Agriculture
Make
TYM Tractors
Model
3515
Trim
Base
Year
2026
Price
25258.00
Category
Tractor
Subcategory
Compact
Condition
New
Location
Lot
Fuel Type
Diesel
Specifications
Engine
Manufacturer: TYM T1700N2
Transmission
Type: 3515R: Synchromesh | 3515H: HST
Power/Horsepower
35 hp
PTO Type
Rear: 540 rpm | Power: 30 hp | type: Independent | Control: Wet/Multi disc
RPM
Rated engine speed: 2600 rpm
Cylinders
No. of cylinders: 3
Displacement
104.5 cu. in.
Notes
R4 Industrial - Rear: 420/70-24. 6PR | R4 Industrial - Front: 10-16.5, 6PR | R3 Turf - Rear: 41x14.00, 4PR | R3 Turf - Front: 27x8.5-15, 6PR | R1 Agricultural - Rear: 12.4-24 | R1 Agricultural - Front: 8-16 | Min. turn radius without brakes: (L) 124.8 in. | 3170 mm / (R) 121.3 in. | 3080 mm | Min. turn radius with brakes: (L) 98.0 in. | 2490 mm / (R) 94.1 in. | 2390 mm | Front axle: 6.8 qt | Crankcase: 4.5 q | Coolant: 5.3 qt | Max. traveling speed: 3515R: 14.4 mph, 3515H: 18.8 mph | No. of speeds: 3515R: F12 x R12, 3515H: 3-Range | No. of standard remote valves: Loader: 2 / Rear: 0 | Lift control type: Position | Hitch lift capacity at 24 inches behind link ends: 2425 lb | Hitch lift capacity: 3306 lb | Total flow: 11.9 gpm | Air cleaner: Dry element | Pump type: Dual gear pump | Implement flow: 7.7 gpm
Alternator
12V, 50A
Fuel System
IDI
Steering
Fow: 4.2 gpm | Hydrostatic
Brakes
Wet, Multi disc
Clutch
Dry single plate / N/A
Fuel Capacity
7.1 gal
Length
With 3-point hitch: 120.9 in
Width
56.3 in.
Wheelbase
65.7 in.
Height
To top of ROPS: 97.3 in
Ground Clearance
Min. ground clearance: 14.4 in.
Weight
Weight with ROPS 3515R: 3183 lb, 3515H: 3163 lb
Fuel Type
Diesel
